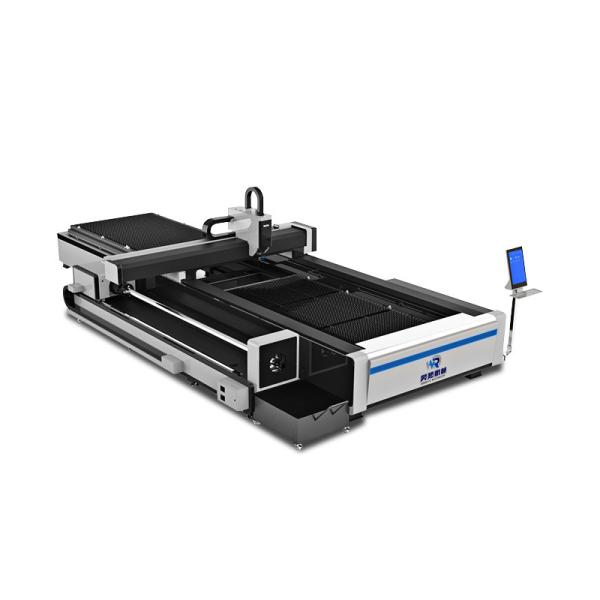

3015 Plate And Tube Fiber Laser Cutting Machine Metal Cutter Fiber

Product Overview

Fiber laser cutting machine is a laser cutting machine that uses fiber laser as the light source. Fiber laser is a new type of fiber laser that is newly developed in the world. It outputs high-energy-density laser beam, which is concentrated on the surface of the work-piece, so that the area irradiated by the ultra-fine focus spot on the work-piece is instantly melted and vaporized, and the spot is moved by the numerical control mechanical system. Realize automatic cutting by irradiating position, fast speed and high precision. The fiber laser cutting machine has good processing flexibility and can process any graphics, and can also cut pipes and other profiles; it can cut steel plates, stainless steel, aluminum alloy plates, hard alloys and other materials with any hardness without deformation.

PRODUCT SPECIFICATIONS

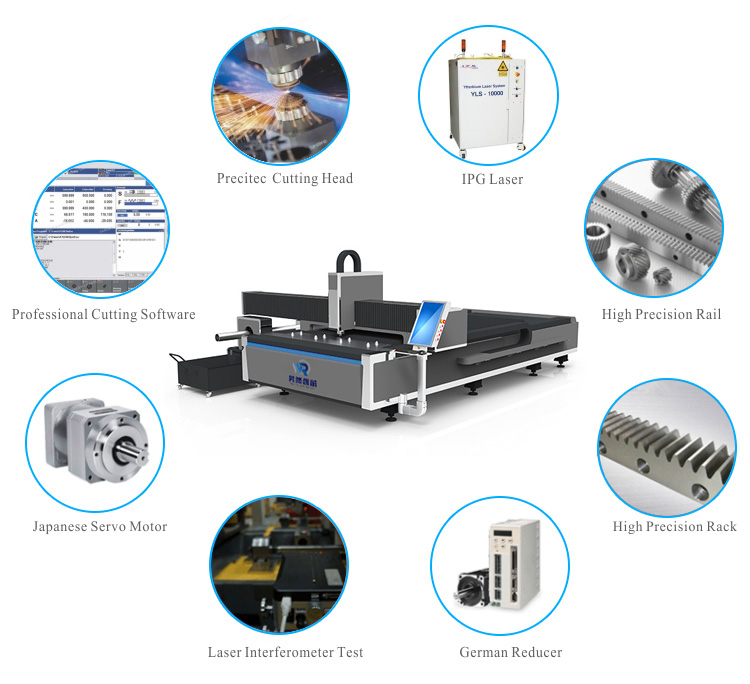

product details

1. Fiber laser is the core component of fiber laser cutting machine, and it is also the "power source" for fiber laser cutting machine to realize cutting operation. Compared with other types of lasers, Raycus fiber lasers have the advantages of higher efficiency, longer service life, less maintenance, and lower cost. 2. The cutting head of the laser cutting machine is a laser output device, which consists of a nozzle, a focus lens and a focus tracking system. The cutting head of the Raytools laser cutting machine will travel according to the set cutting track, but the height of the laser cutting head needs to be adjusted and controlled under different materials, different thicknesses, and different cutting methods. 3. Servo motor: Servo motor refers to an engine that controls the operation of mechanical components in a servo system. It is an auxiliary motor indirect speed change device. The FUJI servo motor can control the speed and position accuracy very accurately, and can convert the voltage signal into torque and speed to drive the control object. The high-quality servo motor can effectively ensure the cutting accuracy, positioning speed and repeat positioning accuracy of the laser cutting machine. 4. Water chiller: The chiller is the cooling device of the laser cutting machine, which can quickly and efficiently cool the laser, spindle and other devices. S&A's chillers all contain input and output control equipment switches, as well as advanced functions of cooling water flow, high and low temperature alarms, and their performance is more stable. 5. Host: The bed, beam, worktable, and Z-axis system of the laser cutting machine are collectively referred to as the host. When the laser cutting machine performs cutting, first put the workpiece on the bed, and then use the servo motor to drive the beam to control the movement of the Z axis. The user can adjust the parameters according to their own needs. 6. Cypcut control system: It mainly controls the machine tool, realizes the movement of X, Y, Z axis, and also controls the output power of the laser. 7. Stabilized power supply: connected between the laser, CNC machine tool and the power supply system. Mainly play a role in preventing interference from external power grids.

sample

The fiber laser cutting machine can be used for plane cutting and bevel cutting, and the edges are neat and smooth. It is suitable for high-precision cutting processing of metal plates, and is used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, etc. Various manufacturing and processing industries such as subway accessories, automobiles, food machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchenware processing, etc. Fiber laser cutting machine has high precision, fast speed, narrow slit, minimum heat-affected zone, smooth cutting surface without burrs; laser cutting head will not touch the surface of the material, and does not scratch the workpiece; the narrowest slit, heat-affected zone Minimal, extremely small local deformation of the workpiece, no mechanical deformation. The fiber laser cutting machine has good processing flexibility and can process any graphics, and can also cut pipes and other profiles; it can cut steel plates, stainless steel, aluminum alloy plates, hard alloys and other materials with any hardness without deformation.

Shandong Honest Machinery Co., Ltd. was established in 1997, has a research institute and office space of more than

500 square meters, and has purchased a production base of more than 32,000 square meters of factories.  There  are

more than 700 employees, more than 100 R&D teams, and nearly 100 after-sales technical engineers.They have many

years of experience in scientific research and production.

Honest is committed to the research and development of the laser industry, 23 years of accumulation, and obtained more

than 100 product and technology authorized patents. In the first half of 2018, there were more than 30 new patent pplicati

ons. The product has obtained European Union CE certification, passed  ISO  9001 certification, and has many  scientific research achievements.Honest laser products are sold to more than 150 countries and regions including the UnitedStates, Canada, Australia, Europe, and Africa, and provide OEM services for more than 30 manufacturers worldwide.

With more than 23 years of factory experience, the company has a technical team that integrates almost development, processing, software development and sales to make cnc machine router . More smoothly, we have obtained the self-sup

port import and export rights granted by the Ministry of Foreign Trade and Economic Cooperation, which can guarantee q

uality problems. The company specializes in the production of advertising equipment,automatic wood carving machine , woodworking engraving equipment, woodworking machining centers, metal cutting machine , laser cutting machine,plasm

a cutting machine,welding robot,CNC lathes and other numerical control equipment, cnc machine router to achieve the pr

ocess of CNC technology to industrial transformation automatic. Established the company's leading position in the engrav

ing machine industry.

we are willing to create a brilliant future with unremitting efforts and pursuit. Do the best in product quality and customer service.
