Cypcut Raycus 2000w Laser Cutting Machine With Exchange

    Buy cheap Cypcut Raycus 2000w Laser Cutting Machine With Exchange from wholesalers

    Buy cheap Cypcut Raycus 2000w Laser Cutting Machine With Exchange from wholesalers
    • Buy cheap Cypcut Raycus 2000w Laser Cutting Machine With Exchange from wholesalers
    • Buy cheap Cypcut Raycus 2000w Laser Cutting Machine With Exchange from wholesalers

    Cypcut Raycus 2000w Laser Cutting Machine With Exchange

    Ask Lasest Price
    Brand Name : Honest
    Model Number : HN - 1530
    Certification : CE ISO
    Price : usd16000-40000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40platform
    Delivery Time : 20-30day
    • Product Details
    • Company Profile

    Cypcut Raycus 2000w Laser Cutting Machine With Exchange

    2000w Raycus Precision Fiber Laser Cutting Machine With Exchange
    Product Overview


    Fiber laser cutting machine is to mix the pump material into the fiber and couple the laser with a specific wavelength emitted by the semiconductor laser. Make the optical fiber produce laser. The photoelectric conversion rate is high, which can reach twice that of carbon dioxide. Moreover, it has advantages in cutting sheet metal, because the light emitted by the fiber laser has a wavelength of 1070 nm, so the absorption rate is higher.

    The main feature of fiber laser cutting machine is that it can cut very complex graphics and low cutting cost. Due to non-contact cutting, the workpiece deformation is small and the product quality is good.
    PRODUCT SPECIFICATIONS

    Model
    3015
    4020
    6020
    Option
    Working area
    3000*1500mm
    4000*2000mm
    6000*2000mm
    According to demands
    Maxim running speed
    70m/min
    Laser wavelength
    1080 nm
    Minimum cutting line width
    0.1mm
    Rated output power
    2000W
    Repeated positioning accuracy of worktable
    ≤±0.015㎜
    Maximum load of worktable
    500KG
    Z axis travel
    120mm
    Machine power
    12KW
    Chiller
    2kw
    Power supply
    380v±10%
    Red light positioning
    provide
    X/Y axis positioning accuracy
    ±0.03mm
    X/Yaxis repeat positioning accuracy
    ±0.02mm
    X/Y axis repeat positioning accuracy
    140M/MIN
    Maximum acceleration
    0.6G-1.5G

    Cypcut Raycus 2000w Laser Cutting Machine With Exchange

    Product Details

    Cypcut Raycus 2000w Laser Cutting Machine With Exchange

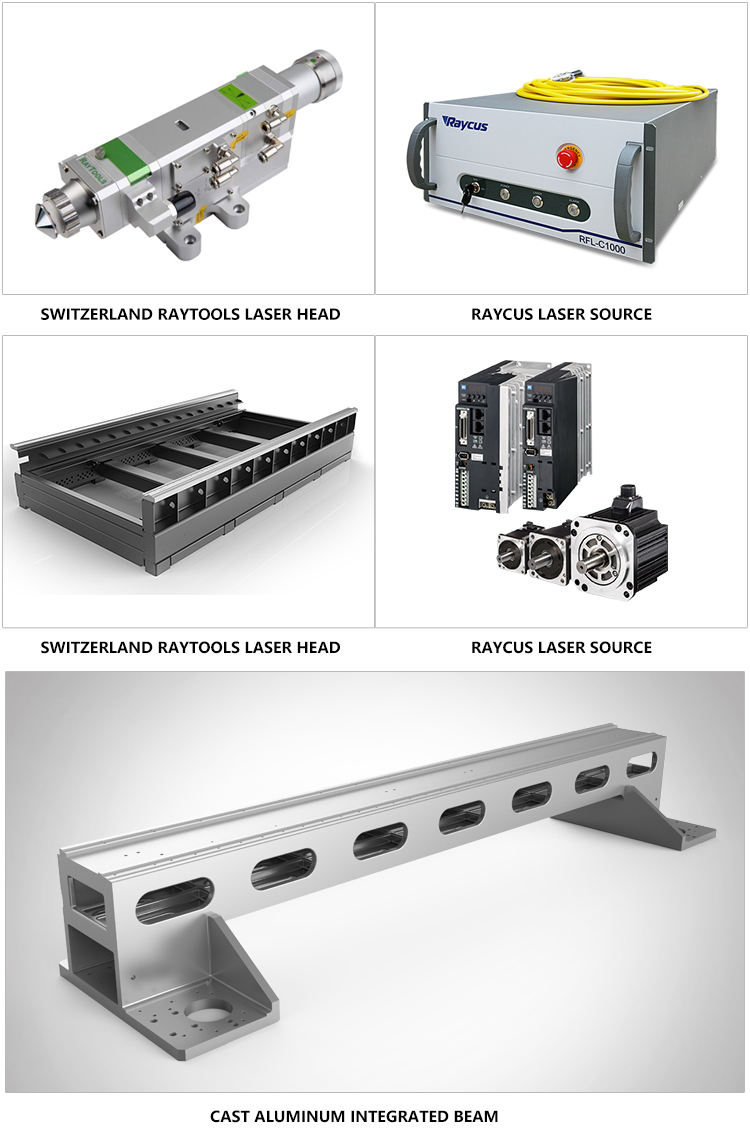

    1. Auto focusing laser head: the same laser head can quickly change the focusing lens with different focal length, adapt to various power processing, and meet the cutting of plates with different thickness. By using the auto focus function, the user can focus quickly and accurately during cutting or engraving, which makes the cutting or engraving work more time-saving and better. Therefore, using the laser head with auto focusing function can help you improve your efficiency in the working process.


    2. Japan Yaskawa servo motor, stable and powerful power output.

    3. Segmented rectangular tube sheet welding bed: the internal structure of the bed adopts the aircraft metal honeycomb structure,which is welded by multiple rectangular tubes. Stiffeners are set inside the tubes to increase the strength and tensile properties of the bed, increase the tensile properties and stability of the guide rail surface, and effectively avoid the deformation of the bed.

    4. Intelligent operating system: Cypcut professional intelligent control system has automatic nesting function, stable performance and fast operation. It supports a variety of general file formats, DXF, PLT... Simple and fast operating system, one key import of multiple cutting graphics and accurate cutting instructions, so that the user's experience effect is better.

    5.The wireless handle control operation is simpler and more efficient.
    Certifications
    Cypcut Raycus 2000w Laser Cutting Machine With Exchange
    All products are available upon request, with or without trademarks.If you need OEM service with your own brand or product,please let us know,If you have any other specific requirements,please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade,and passed the ISO9001 quality management system certification and CE certification.In the quality layer by layer,we will wholeheartedly serve for the majority of customers

    Company information
    Cypcut Raycus 2000w Laser Cutting Machine With Exchange
    Honest Laser, the pioneer and leader of laser industrial application in China, is an authoritative provider of laser processing solutions in the world. Comprehensive layout laser intelligent equipment, measurement and automation production line, factory construction wisdom, provide overall solution for intelligent manufacturing. We provide rich, fully functional fiber laser cutting machine, with its powerful cutting ability, high cutting speed and excellent stability authority technology awards for many times, industry wide application. Fully meet the needs of sheet metal processing industry, power laser cutting machine into the new era.

    HN series, "flew" cutting speed, a new generation of economical type optical fiber laser cutting machine, easy to meet the needs of various industries; Core source and independent production, with new technology solutions, investment income growth clients to solve problems of low and high cost of equipment maintenance.

    Widely used equipment, engineering machinery, automobile manufacturing, sheet metal cutting, fitness equipment, machine tools, and other fields, from global customers high praise.
