4 Axis Machining Center Vmc840 CNC Servo Direct Control

    Buy cheap 4 Axis Machining Center Vmc840 CNC Servo Direct Control from wholesalers

    Buy cheap 4 Axis Machining Center Vmc840 CNC Servo Direct Control from wholesalers
    • Buy cheap 4 Axis Machining Center Vmc840 CNC Servo Direct Control from wholesalers

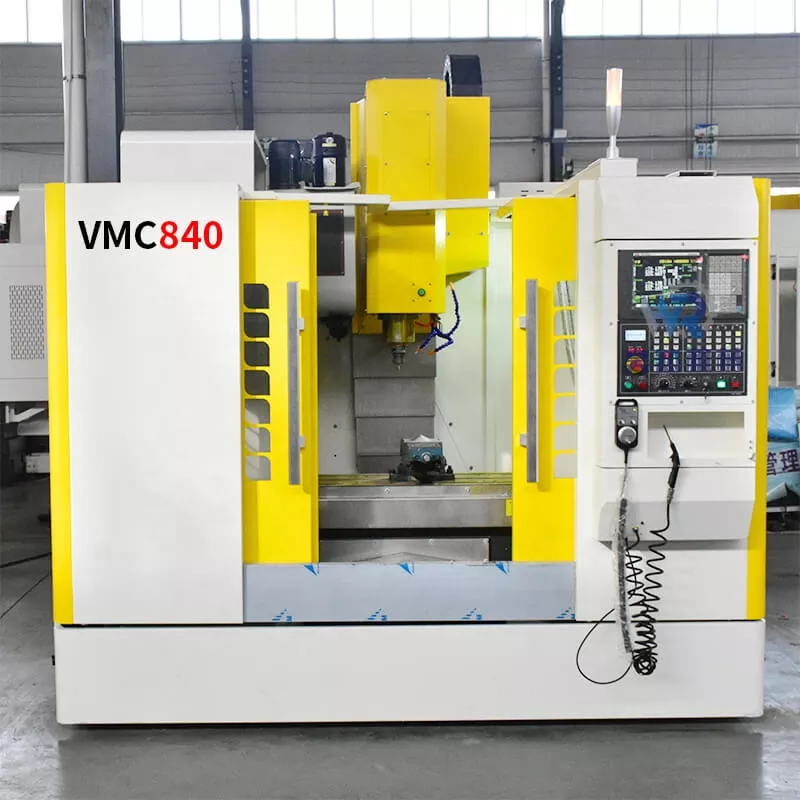

    4 Axis Machining Center Vmc840 CNC Servo Direct Control

    Ask Lasest Price
    Brand Name : honest
    Model Number : vmc840
    Certification : ceiso
    Price : 20000-40000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 20-30day
    • Product Details
    • Company Profile

    4 Axis Machining Center Vmc840 CNC Servo Direct Control

    4-Axis Machining Center Vmc840 CNC Milling Machine Factory Price


    CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). Vmc840 CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping.Vmc840 CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining cente


    Model
    VMC650
    VMC840
    VMC850
    VMC855
    Table size (mm)
    1000*400
    1000*400
    1000*500
    1000*550
    Max. allowable load (Kg)
    400
    300
    500
    500
    X-axis stroke (mm)
    650
    800
    800
    800
    Y-axis travel (mm)
    400
    400
    500
    550
    Z-axis travel (mm)
    550
    550
    500
    550
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500


    Product Details

    CNC vertical machining center machine has strong rigidity. The bed casting adopts high-quality casting. The machine tool has large weight and maintains the high rigidity and stability of the machine tool.
    Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT50 tool handle is optional.
    machine tool is equipped with automatic chip remover. There are chip removal return tanks on both sides of the bed to fully ensure the internal structural stiffness of the bed, and a large flow chip flushing outlet is reserved, which is convenient and efficient for chip removal.
    Equipped with precision ball screw and servo motor drive, the connection between the screw and the motor adopts special coupling technology, with small moment of inertia, no transmission gap, high transmission stiffness and high speed, and the cutting feed speed can reach 20m / min
    After precise testing, can buy it safely
    sample
    It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
    Packaging&Shipping
    Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
