VMC850 KND 3 Axis Machining Center Cnc Vertical

    Buy cheap VMC850 KND 3 Axis Machining Center Cnc Vertical from wholesalers

    Buy cheap VMC850 KND 3 Axis Machining Center Cnc Vertical from wholesalers
    • Buy cheap VMC850 KND 3 Axis Machining Center Cnc Vertical from wholesalers
    • Buy cheap VMC850 KND 3 Axis Machining Center Cnc Vertical from wholesalers

    VMC850 KND 3 Axis Machining Center Cnc Vertical

    Ask Lasest Price
    Brand Name : honest
    Model Number : vmc850
    Certification : ceiso
    Price : 21000-40000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    VMC850 KND 3 Axis Machining Center Cnc Vertical

    VMC850 KND 3 Axis Machining Center Small Cnc Milling Machine


    Vmc850 CNC milling machine is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). Vmc850 CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping.Vmc850 CNC milling machineIt is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. Vmc850 CNC milling machine



    ModelVMC650VMC840VMC850VMC855VMC966 IVMC1050VMC1160VMC1165VMC1265 IVMC1370 IVMC1580
    Table size (mm)1000*4001000*4001000*5001000*5501100*5501200*4201200*6001200*6001200*6001400*7001700*800
    Max. allowable load (Kg)4003005005006005008008008008001500
    X-axis stroke (mm)650800800800900100011001100120013001500
    Y-axis travel (mm)400400500550600500600650650700800
    Z-axis travel (mm)550550500550600550600650650750700
    T-slot3-18-1203-18-1405-18-1085-18-905-18-1005-18-1005-18-1005-18-1005-18-1005-18-1305-22-135
    spindle center to Z-axis guide surface (mm)485445552590663575650710710713855
    spindle end face to work table (mm)100-650100-650110-610120-670100-700100-650120-720120-720120-770120-870160-860
    Spindle taper holeBT40-120BT40-120BT40-140BT40-150BT40-150BT40-150BT40-150BT40-150BT40-150BT40-150BT50-155
    Spindle speed (r/min)80008000800080008000800080008000800080006000
    X/Y/Z rapid movement (m/min)48/48/4830/30/1848/48/4848/48/4848/48/4818/18/1836/36/2436/36/3636/36/3624/24/2424/24/18
    Machine Weight (Kg)380032005300550056005500650068007000800012000

    Product Description:

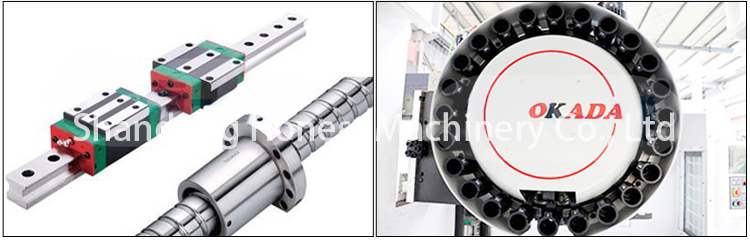

    1. Taiwan HIWIN high precison guideway
    2. Taiwan-made spindle Unit,8000-12000rpm available
    3. Reliable Control System: vertical machining center is suitable for producing metal product and parts in all shapes.



    Product application


    It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
    mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.



    Certifications


    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
    Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.



    Customer visiting


    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.
    Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future



    FAQ


    1.What CNC system do you use?
    A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
    2. Payment Terms
    A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
    3. What is your trade terms?
    A : FOB, CFR and CIF all acceptable.
    4.How can I choose the most suitable machines ?
    A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
    You can also send us the products drawing ,we will choose the most suitable machines for you .
    5.Where is our factory located? How can I visit there?
    A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
    6.What's the MOQ?
    A: 1 set .
    7.How long is the machine warranty?
    A:warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
