    6000W 3015 High Power Fiber Laser Cutting Machine For Carton

    Ask Lasest Price
    Brand Name : Honest
    Model Number : HN-1530
    Certification : CE ISO
    Price : 18000-30000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20set/month
    Delivery Time : 10-20day
    • Product Details
    • Company Profile

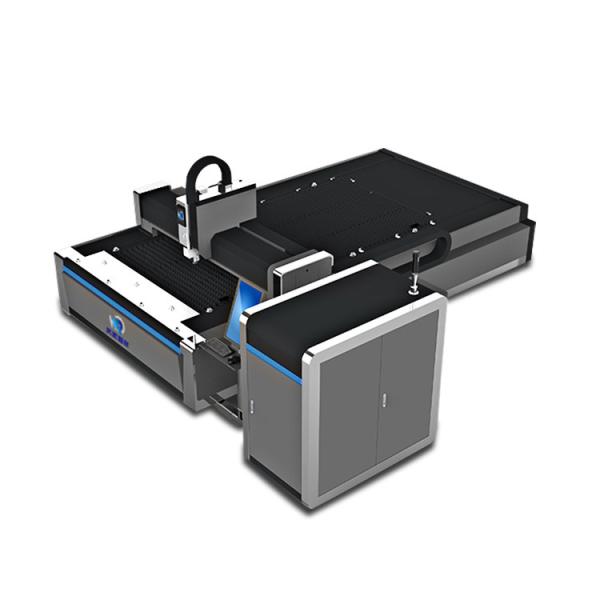

    6000W 3015 High Power Fiber Laser Cutting Machine For Carton

    6000 W 3015 High Power Fiber Laser Cutting Machine For Stainless Steel Carton
    Machine Information:

    Fiber laser cutting machine is a laser cutting machine which uses fiber laser generator as light source.
    Fiber laser is a new type of fiber laser developed in the world, which outputs high energy density laser beam and aggregates on the surface of workpiece. It instantly melts and vaporized the area irradiated by ultra-fine focus spot, and automatically cuts through the position of the moving spot of the numerical control mechanical system. Compared with large volume gas lasers and solid state lasers, it has obvious advantages and has gradually become an important candidate in high-precision laser processing, lidar systems, space technology, laser medicine and other fields.

    Machine Data:

    Model3015 Fiber laser cutting machine
    Working Area3000*1500mm
    Laser Power6000W
    Laser GeneratorRaycus
    Laser Wave Length1064nm
    Working TableSawtooth
    Maximum Idle Running Speed120m/min
    Maximum acceleration1.5G
    Position Accuracy±0.02mm/m
    Repeat Positional Accuracy± 0.01mm
    Position Typered dot
    Power Consumption≤40KW
    Working Voltage220V/380V ±10 % 50/60Hz
    Auxiliary Gasoxygen,nitrogen,air
    Working life of fiber moduleMore than 100000 hours
    Cooling SystemS&A industrial water chiller
    Work Environment0-45°C, Moisture 45-85%
    Delivery time30-35 working days (According to actual season)

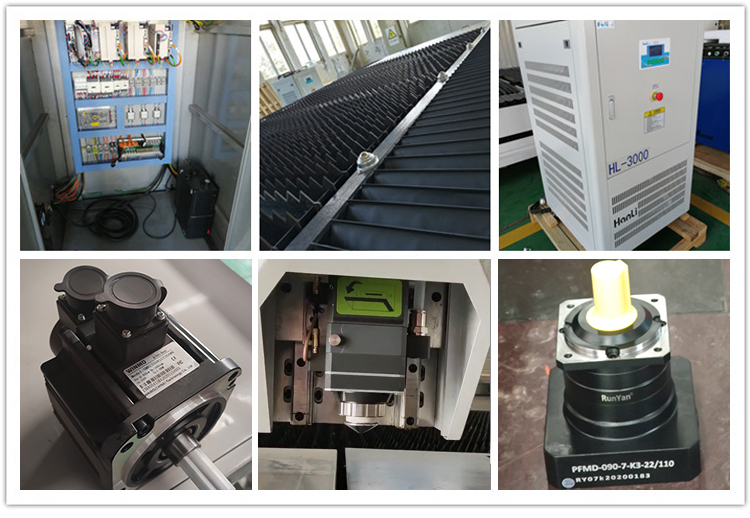

    Machine Detail:

    1. Auto focusing laser head: the same laser head can quickly change the focusing lens with different focal length, adapt to various power processing, and meet the cutting of plates with different thickness. By using the auto focus function, the user can focus quickly and accurately during cutting or engraving, which makes the cutting or engraving work more time-saving and better. Therefore, using the laser head with auto focusing function can help you improve your efficiency in the working process.

    2. Equipped with YYC large gear strips, Japan's Yaskawa motor adopts Xinbao reducer. The positioning accuracy of the bed is 0.02 and the working life can reach ten years.

    3. Intelligent operating system: Cypcut professional intelligent control system has automatic nesting function, stable performance and fast operation. It supports a variety of general file formats, DXF, PLT... Simple and fast operating system, one key import of multiple cutting graphics and accurate cutting instructions, so that the user's experience effect is better.
    4.The wireless handle control operation is simpler and more efficient.
    5.The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by multiple rectangular tubes. The internal equipment of the tube is strengthened to increase the strength and tensile properties of the bed, increase the stability of the guide rail free surface, and effectively avoid the deformation of the bed; This structure has high strength, good stability and strong tensile strength;




    Machine Application:

    Applicable materials: it is specialized in cutting a variety of medium and thin metal plates, high-quality cutting of 0.5-10mm carbon steel plate, as well as stainless steel plate, aluminum alloy plate, galvanized plate, electrolytic plate, silicon steel, titanium alloy, aluminized zinc plate and other metal materials.

    Suitable materials: it is used for cutting various kinds of thin metal plates, cutting 0.5-10mm carbon steel plates with high quality, cutting stainless steel plates, aluminum alloy plates, galvanized sheets, electrolytic plates, silicon steel, titanium alloys, aluminum zinc plates, and other metal materials. Laser external processing services and other machinery manufacturing and processing industry.
