Brand Name : | honest |
Model Number : | hn-1000 |
Certification : | ceiso |
Price : | 6000-30000usd |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 40set/month |
Delivery Time : | 20-30day |

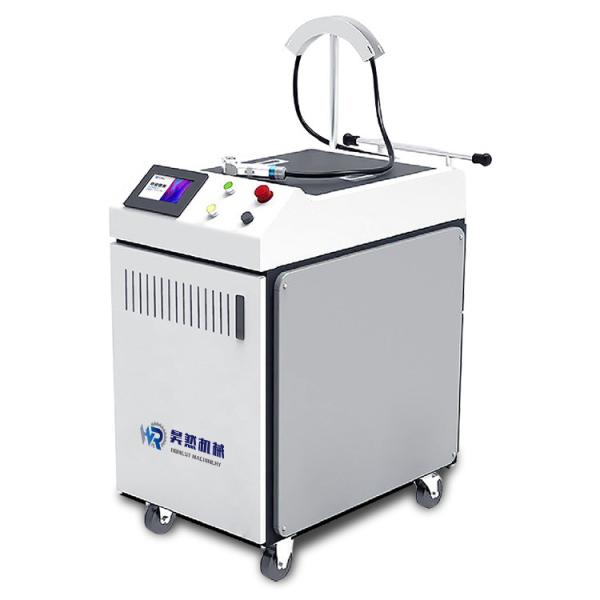

Laser Welding Machine 2000W Fiber Laser Welding Machine Carbon Steel Stainless
laser welding machine is a type of portable fiber laser beam
welding machine which couples the high energy fiber laser beams
into the optical fiber, after long-distance transmission, then
transformed into parallel lights through collimating mirror to be
focused on the work piece to implement the welding.
The handheld laser welder is used for welding carbon steel,
stainless steel, aluminum, brass, copper, iron, silver, gold, and
more sheet metals and metal tubes. The portable handheld fiber
laser welding machine will take over the traditional argon arc
welding,MIG & TIG welding, and electric welding.
Material | Protection gas | Welding speed | Fusion depth(mm) | ||
1kw | 1.5kw | 2kw | |||
Aluminum | N2 or Ar | 0.8m/min | 0~1.5mm | 0~2mm | 0~3mm |
3m/min | 0~1.0mm | 0~1.5mm | 0~2mm | ||
6m/min | / | 0~0.7mm | 0~1.1mm | ||
Mild steel | Galvanized sheet: Ar Mild steel: N2 or Ar | 1m/min | 2.06mm | 2.77mm | 3.0mm |
2m/min | 1.81mm | 2.43mm | 2.8mm | ||
3m/min | 1.52mm | 2.08mm | 2.6mm | ||
4m/min | 1.33mm | 1.89mm | 2.4mm | ||
5m/min | 1.01mm | 1.71mm | 2.0mm | ||
6m/min | 0.93mm | 1.54mm | 1.8mm | ||
Stainless Steel | Ar/N2 | 1m/min | 2.68mm | 3.29mm | 3.7mm |
2m/min | 2.33mm | 3.03mm | 3.5mm | ||
3m/min | 1.95mm | 2.75mm | 3.2mm | ||
4m/min | 1.67mm | 2.39mm | 3.0mm | ||
5m/min | 1.33mm | 2.11mm | 2.8mm | ||
6m/min | 1.14mm | 1.74mm | 2.5mm |
Product details
1.laser welding machine features the best fiber laser beam
2.High welding speed and high quality welding seam without
consumables.
3.The fiber laser welder is more flexible to implement flexible
transmission of non-contact welding for those difficult to weld
site.
4.The laser beam welding can realize the spectrum separation on
time and energy, it can do multi-beam welding at the same time, it
provides the conditions for high precise welding compared with the
traditional MIG & TIG welding, electric welding, and arc welding.
Application&samples
There are many application industries , including engineering
machinery, petrochemical, energy, nuclear power, rail transit,
aerospace, shipbuilding, mining, machinery, automobile,
metallurgical equipment, food machinery, medical machinery and
other industries.
Packaging & Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 3-20 working days after payment.
Customer visiting
We welcome customers to visit the factory, we will let you buy, we
will have customers to visit the factory and customers online
purchase feedback, through feedback learning experience, continuous
progress, better service for you.
Shandong Honest is willing to unremitting pursuit and efforts, hand
in hand with merchants to create a brilliant future
![]() |
