Brand Name : | Honest |
Model Number : | HN - 1530 |
Certification : | CE ISO |
Price : | 17000 USD/ Set-35000 USD / Set |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 40 Set / Month |
Delivery Time : | 5-8 Working Days |

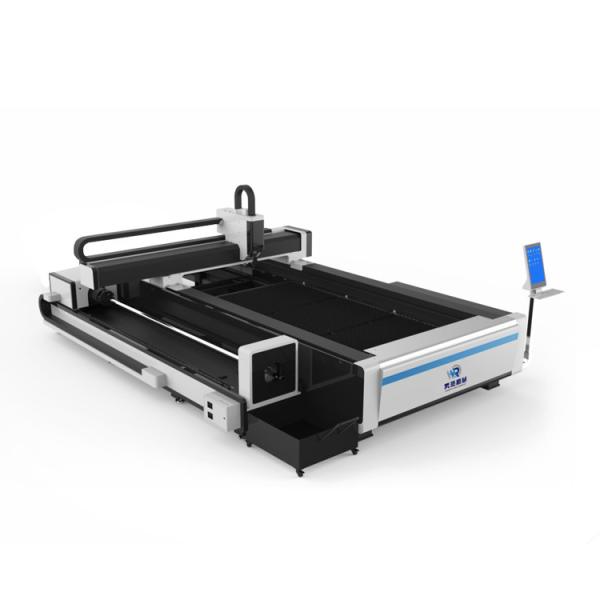

3000 X 1500 Stainless Carton Steel Pipe Tube And Plate Fiber Laser Cutting Machine
►Machine overview
The plate and tube integrated fiber laser cutting machine series mainly face customers who need laser cutting processing of plates and tubes. This model adopts a rack and pinion transmission structure, standard manual clamping chuck, and push-type tube cutting.It can be used for General sheet metal cutting and common square tube, round tube, rectangular tube cutting.
►Machine Data
Model | HN-3015 | |
Working size | 3000*1500mm | |
Laser output power | 1000w/2000w/3000w/4000w | |
Tube cutting diameter | Φ20-φ200mm | |
Square tube cutting diameter | о20*20-о140*140 | |
Rectangular tube | Minimum side length | ≥20mm |
Rectangular tube | Outer ring diameter | ≤200mm |
Effective cutting length | 3m/6m | |
X/Y/U axis positioning accuracy | ±0.03mm | |
X/Y/U axis repeat positioning accuracy | ±0.02mm | |
X/Y axis maximum speed | 140m/min | |
U-Max speed | 35m/min |
►Application
►Product Detail
1. Auto-focusing laser head: The same laser head can quickly change the focusing lens of different focal lengths, adapt to various power processing, and meet the cutting of different thickness plates. By using the auto focus function, the user can quickly and accurately focus when cutting, which makes the cutting work more time-saving and better. Therefore, using a laser head with auto-focus function can help you improve efficiency in the work process.
2. Segmented rectangular tube-sheet welding machine bed: The internal structure of the machine bed adopts the aircraft metal honeycomb structure, which is welded by multiple rectangular pipes. The pipes are equipped with stiffeners to increase the strength and tensile strength of the machine bed and increase the guide rail surface. Its tensile resistance and stability can effectively avoid deformation of the bed.
3. Japan Fuji servo motor, stable and powerful power output: Fuji servo motor, as a world-class motor manufacturer, enjoys a high reputation in motion control. Won the market's praise in the industry and has been highly recognized by customers.
![]() |
