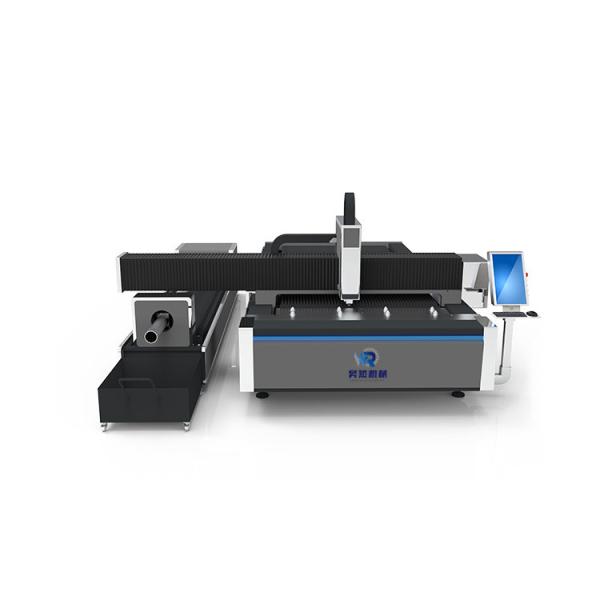

Stainless Carton Steel Pipe Tube 3000W Fiber Laser Cutting Machine
3000x1500
3000 X 1500 Stainless Carton Steel Pipe Tube 3000W And Plate Fiber
Laser Cutting Machine
►Machine overview
The plate and tube integrated fiber laser cutting machine series
mainly face customers who need laser cutting processing of plates
and tubes. This model adopts a rack and pinion transmission
structure, standard manual clamping chuck, and push-type tube
cutting.It can be used for General sheet metal cutting and common
square tube, round tube, rectangular tube cutting.
►Machine Data
| Model | Whole cover exchange platform laser cutting machine | | Engraving size | 3000*1500mm | | Overall dimensions | 8850*2850*2310mm | | Laser power | 1000W/1500W/2000W/3000W/4000w/6000W/8000W | | Engraving speed | Max speed 120m/min | | Re-position accuracy | ±0.02mm | | Working voltage | AC380V±10%,50-60Hz | | X axis and Y axis positioning accuracy | ±0.03mm | | Max acceleration | 1.5G | | Max load-bearing of working table | 1000KG | | Power consumption of whole machine | <15KW (<12kw-1KW) | | Supported file format | BMP,HPGL,PLT,DST,DXP and AI | | Driving system | Japanese YASKAWA/Pansonic servo motors | | Laser tube cooling type | Water-cooling and protection system | | Transmission mode | Important high precision with double driving rack | | Laser control software | Cypcut control system | | Laser source | IPG/Raycus | | Weight | 5000KG |
|
►Application
There are many application industries of welding robot, including
engineering machinery, petrochemical, energy, nuclear power, rail
transit, aerospace, shipbuilding, mining, machinery, automobile,
metallurgical equipment, food machinery, medical machinery and
other industries.
1. Automobile industry.Many corners of the automobile industry,
such as car doors, exhaust pipes and so on, after the formation of
some extra corners may burr needs to be dealt with, assuming that
the precision is difficult to reach manually, and then a lot of
efficiency.Adopting robot laser cutting machine can deal with batch
processing quickly.
2. Advertising.Advertising industry because of more customization,
the effectiveness of traditional methods is very low, the use of
laser cutting machine, no matter how thick the plate, no matter how
many font, laser cutting machine will make you satisfied.
3.Kitchenware industry.Now the house is more and more, more and
more decoration, kitchen utensils and appliances related products
demand is more and more, laser cutting machine suitable for cutting
thin plate stainless steel, fast, high precision, high
satisfaction, and can complete customized and characteristic
products open, deep kitchen manufacturers love.
►Product Detail
1. Auto-focusing laser head: The same laser head can quickly change
the focusing lens of different focal lengths, adapt to various
power processing, and meet the cutting of different thickness
plates. By using the auto focus function, the user can quickly and
accurately focus when cutting, which makes the cutting work more
time-saving and better. Therefore, using a laser head with
auto-focus function can help you improve efficiency in the work
process.
2. Segmented rectangular tube-sheet welding machine bed: The
internal structure of the machine bed adopts the aircraft metal
honeycomb structure, which is welded by multiple rectangular pipes.
The pipes are equipped with stiffeners to increase the strength and
tensile strength of the machine bed and increase the guide rail
surface. Its tensile resistance and stability can effectively avoid
deformation of the bed.
3. Japan Fuji servo motor, stable and powerful power output: Fuji
servo motor, as a world-class motor manufacturer, enjoys a high
reputation in motion control. Won the market's praise in the
industry and has been highly recognized by customers.
4. Cypcut professional intelligent control system, with automatic
nesting function: stable performance, fast operation, support a
variety of common file formats, DXF, PLT...concise and fast
operating system, one-click import of multiple types of cutting
graphics, Accurate cutting instructions make the user experience
better.
5. High-power laser source Chuangxin/IPG/Raycus: The laser of each
machine is selected according to the customer's cutting needs.
►Product Characteristic
1. Powerful cutting function, which can meet customers' flat and
tube cutting requirements at the same time.
2. It adopts pneumatic chuck and push-type cutting method, which
has high centering precision and processing precision.
3. The machine tool adopts the integral profile welding structure
that has been verified and verified by CAE for many times.Annealing
eliminates internal stress and finish machining, which better
solves the stress caused by welding and processing,thereby
improving the rigidity and stability of the equipment.
4. The gantry adopts a high-strength aluminum alloy integral
casting structure, which has the advantages of light weight and
good dynamic response.
5. X/Y axis adopts precision helical gear transmission mechanism,
which effectively guarantees the accuracy and speed in the cutting
process.
6. Better stability and longer service life.
7. Excellent processing system, friendly interface, convenient
operation, and real-time feedback on the processing status,ensuring
the orderly progress of processing.
