    1000W 1530 Fiber Laser Cutting Machine For Steel 8m/Min

    Ask Lasest Price
    Brand Name : HONEST
    Model Number : HN1530
    Certification : CE ISO
    Price : $20000-$40000/Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    1000W 1530 Fiber Laser Cutting Machine For Steel 8m/Min

    1530 1000W Fiber Laser Cutting Machine For Steel

    Stainless steel laser cutting machine features

    1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
    2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
    3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
    4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
    5. China Top fiber laser machine cutting manufactuers, HONEST, best price and high quality, with CE etc certificates.

    The advantages of fiber laser cutting machine:

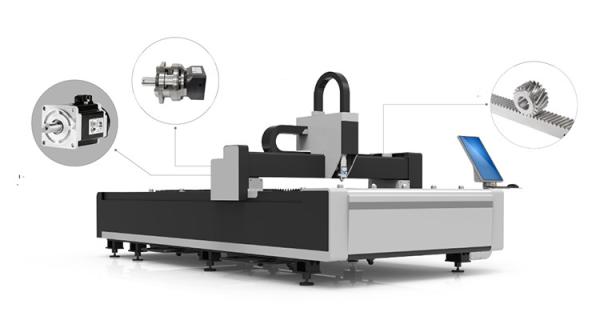

    • Integration design without too much spare parts outside, smaller space, less costs.
    • Germany originally imported Alpha rack&pinion, compared to made in China or Taiwan, has higher precision ensuring best dynamic performance.Cabinet is well protected: Dust-proof, water-proof; Taiwan imported computer is special for industrial usage with long time working.
    • 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 precision welding, make sure 20 years usage without deformation.
    • Waste collection device could be moved both sides which have no special request for machine location.
    • Air cylinder helps to feed sheet metal easily and prevent scratching.

    Feature/Model
    HN3015
    HN4015
    HN4020
    Working Area (L*W))
    3000mm*1500mm
    4000mm*1500mm
    4000mm*2000mm
    Stroke (X/ Y/ Z Axis)
    1525mm/3025mm/150mm
    1525mm/4025mm/150mm
    2025mm/4025mm/150mm
    X/Y Axis Positioning Accuracy
    ±0.03mm/m
    ±0.03mm/m
    ±0.03mm/m
    X/Y Axis Repositioning Accuracy
    ±0.03mm
    ±0.03mm
    ±0.03mm
    Max. Moving Speed
    110m/min
    110m/min
    110m/min
    Max. Acc. Speed
    1.0G
    1.0G
    1.0G
    Power Porection Grade
    IP54
    IP54
    IP54
    Laser Power
    1500W~4000W
    1500W~4000W
    1500W~4000W
    Max. Loading Weight
    800kg
    1000kg
    1400kg
    Machine Weight
    3300Kg
    4000Kg
    5100Kg
    Overall Dimensions (L*W*H)
    4850X2730X1700mm
    6015X2730X1700mm
    6015X3300X1700mm

    Product details

    Beam Section
    The beam adopts aluminum structure, which greatly improves the stability of the machine
    tool.

    It adopts heavy-duty steel mold pressure casting; the mold cost is high but the life is long, and the aluminum water has good fluidity and uniform density. High strength; elimination of casting defects such as blisters; good surface roughness, no processing required for non-installation surfaces; cost Low and high strength of the protective casting skin; the pressure casting wall thickness
    can be 10mm without affecting the strength. Heavy Lightweight, small inertia, and good dynamic performance. (Pictures are for reference only, product updates without notice)

    Application&samples

    Application Materials:
    Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
    Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.


    Application Industries:
    CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

    Company Information

    Shandong Honest machinery equipment co., LTD is one of the largest laser equipment manufacturer in China, the company focus on rate of Yu Dagong laser processing complete sets of equipment research and development, manufacture and sales, including the high power laser cutting machine, laser welding machine and multi-function laser processing equipment, providing customers with personalized and professional laser processing system solutions.
    Honest laser main products cover the full power of fiber laser cutting, laser machining equipment and cutting equipment, products widely used in iron and steel metallurgy, non-ferrous metal, automobile and parts, aviation, military electronics, precision instruments, machinery manufacturing, hardware tools, integrated circuit, solar energy, etc.
    The company advocates "taking the interests and needs of customers as the foundation", and devotes itself to "creating value for customers and benefits for society".
    Advanced technology is the guarantee of product quality, the company has completely independent intellectual property rights, has established a sound and effective quality management system and internal control system;
    The company's products and services to prevention, the implementation of customer return visit, continuous improvement, quick response, efficient and accurate service mechanism, to ensure the stable and efficient operation of products, maximize to help customers to improve economic benefits.
    The sales area covers the whole country, and expands to overseas, and the products are highly praised by customers.
    The company is willing to work together with all partners to make progress and win-win development together to create the largest high power laser processing equipment manufacturing and research and development base.


    Packaging & Shipping

    1. Stable delivery time
    Our factory has large-scale production, and the supply capacity of fiber laser cutting machine is very strong, the shipment is very large, and the delivery time is very fast.
    2. Release product quality standards
    From the selection of materials and accessories, the links of manufacturing paint, to installation and commissioning, trial and error, layered quality control, to ensure that the fiber laser cutting machine is in line with CE, ISO standards
    3. The traffic conditions are very convenient
    We are located in a transportation hub, land transportation, water transportation,
    The transportation conditions are very convenient, which can ensure reasonable transportation costs and sufficient transportation time.
    4. Choose product packaging materials to protect the product
    The finished fiber laser cutting machine products are immediately treated with external rust prevention,
    And use plastic packaging for further protection,
    Delivery with thick wooden planks, steel frame protection,
    And other diversified packaging conditions to ensure that long-distance products are not affected.

    Certifications

    Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification.

    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.


    certificate (3)


    Our Services

    Pre-sale
    Provide detailed suggestions, as well as the introduction of laser fiber cutting machine, program suggestions
    And on-site inspection, as far as possible to meet your problems and needs.
    Payment and machine production
    Support a variety of payment methods for laser fiber cutting machines, the production process is transparent, standardized, and fast delivery. After the machine is completed, it can take a video for you
    After sale
    Support diversified guidance, training, voice and video images of laser fiber cutting machines, and even on-site installation, on-site training, daily maintenance, continuous return visits, and customer service of overseas fiber machines.


    Customer visiting

    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.

    Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

    FAQ
    • One year warranty for the whole machine.
    • Teach video and detailed manual sent with the machine.
    • 24 hours online support.
    • Professional technical support
    • Free design and guide for customer
    • Free software update
    • We can supply the new machine parts or fix the old one.
