    6020 Fully Enclosed Cnc Fiber Laser Cutting Machine 1000w

    Ask Lasest Price
    Brand Name : Honest
    Model Number : HN 26020
    Certification : CE ISO
    Price : $19500/set-$38000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 set/month
    Delivery Time : 7-20days
    • Product Details
    • Company Profile

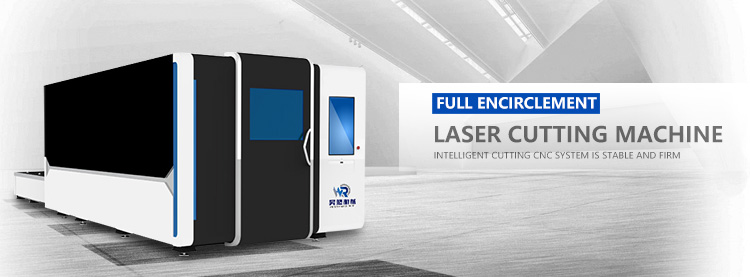

    6020 Fully Enclosed Cnc Fiber Laser Cutting Machine 1000w

    6020 Big Enclosed Full Enclosed Cnc Fiber Laser Cutting Machine 1000w

    ►Product Description

    Fiber laser cutting machine laser as the light source is the use of fiber laser cutting machine, its superior performance, high speed, and high conversion rate, and many other advantages widely used in mechanical processing and machinery manufacturing industry, one of the most typical sheet metal cutting, cutting automobile industry and so on.


    Laser cutting, we can understand it for the separation of edge. Fiber laser cutting machine using optical fiber laser generator as a source of laser cutting machine. Fiber laser is the new development of a new type of fiber laser output laser beam of high energy density, and gathered in the work-piece surface, the work-pieces is super fine focus light irradiation area moment melting and gasification, move the light to shine through numerical control mechanical system and automatic cutting.

    6020 Fully Enclosed Cnc Fiber Laser Cutting Machine 1000w


    ►PRODUCT SPECIFICATIONS


    Model
    3015
    4020
    6020
    Option
    Working area
    3000*1500mm
    4000*2000mm
    6000*2000mm
    According to demands
    Maxim running speed
    70m/min
    Laser wavelength
    1080 nm
    Minimum cutting line width
    0.1mm
    Rated output power
    1000W
    Repeated positioning accuracy of worktable
    ≤±0.015㎜
    Maximum load of worktable
    500KG
    Z axis travel
    120mm
    Machine power
    12KW
    Chiller
    2kw
    Power supply
    380v±10%
    Red light positioning
    provide
    X/Y axis positioning accuracy
    ±0.03mm
    X/Yaxis repeat positioning accuracy
    ±0.02mm
    X/Y axis repeat positioning accuracy
    140M/MIN
    Maximum acceleration
    0.6G-1.5G

    ►PRODUCT DETAILS

    6020 Fully Enclosed Cnc Fiber Laser Cutting Machine 1000w

    1. Auto focusing laser head: the same laser head can quickly change the focusing lens with different focal length, adapt to various power processing, and meet the cutting of plates with different thickness. By using the auto focus function, the user can focus quickly and accurately during cutting or engraving, which makes the cutting or engraving work more time-saving and better. Therefore, using the laser head with auto focusing function can help you improve your efficiency in the working process.

    2. Japan Fuji servo motor, stable and powerful power output.

    3. Segmented rectangular tube sheet welding bed: the internal structure of the bed adopts the aircraft metal honeycomb structure,which is welded by multiple rectangular tubes. Stiffeners are set inside the tubes to increase the strength and tensile properties of the bed, increase the tensile properties and stability of the guide rail surface, and effectively avoid the deformation of the bed.

    4. Intelligent operating system: Bochu professional intelligent control system has automatic nesting function, stable performance and fast operation. It supports a variety of general file formats, DXF, PLT... Simple and fast operating system, one key import of multiple cutting graphics and accurate cutting instructions, so that the user's experience effect is better.

    5.The wireless handle control operation is simpler and more efficient.
    6.The safety protection cover is non polluted: totally enclosed design; Adopt European CE standard protection glass, environmental protection, cut smoke and dust internal filter treatment, achieve standard discharge, no pollution; To protect operators' safety in production process, improve safety factor, and install laser protection glass on the protective cover can effectively reduce laser induced damage to human eyes without affecting the observation of processing conditions.
    ►Company information
    6020 Fully Enclosed Cnc Fiber Laser Cutting Machine 1000w

    Honest Laser, the pioneer and leader of laser industrial application in China, is an authoritative provider of laser processing solutions in the world. Comprehensive layout laser intelligent equipment, measurement and automation production line, factory construction wisdom, provide overall solution for intelligent manufacturing. We provide rich, fully functional fiber laser cutting machine, with its powerful cutting ability, high cutting speed and excellent stability authority technology awards for many times, industry wide application. Fully meet the needs of sheet metal processing industry, power laser cutting machine into the new era.

    HN series, "flew" cutting speed, a new generation of economical type optical fiber laser cutting machine, easy to meet the needs of various industries; Core source and independent production, with new technology solutions, investment income growth clients to solve problems of low and high cost of equipment maintenance.

    Widely used equipment, engineering machinery, automobile manufacturing, sheet metal cutting, fitness equipment, machine tools, and other fields, from global customers high praise.
