30mm Metal Fiber Laser Cutting Machine Open Loop Control

    Buy cheap 30mm Metal Fiber Laser Cutting Machine Open Loop Control from wholesalers

    Buy cheap 30mm Metal Fiber Laser Cutting Machine Open Loop Control from wholesalers
    • Buy cheap 30mm Metal Fiber Laser Cutting Machine Open Loop Control from wholesalers
    • Buy cheap 30mm Metal Fiber Laser Cutting Machine Open Loop Control from wholesalers
    • Buy cheap 30mm Metal Fiber Laser Cutting Machine Open Loop Control from wholesalers
    • Buy cheap 30mm Metal Fiber Laser Cutting Machine Open Loop Control from wholesalers

    30mm Metal Fiber Laser Cutting Machine Open Loop Control

    Ask Lasest Price
    Brand Name : HONEST
    Model Number : HN3015
    Certification : CE ISO
    Price : $18000-$83000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

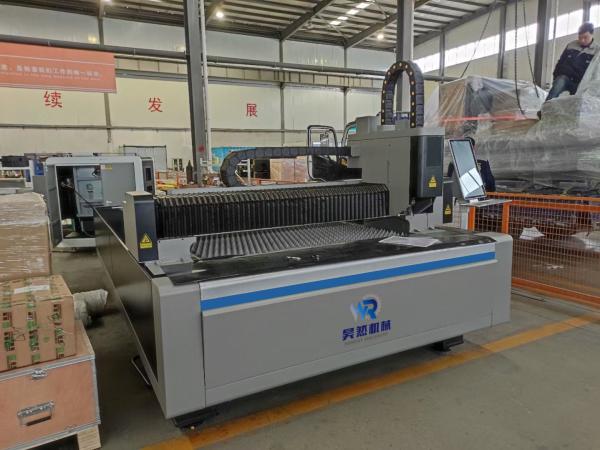

    30mm Metal Fiber Laser Cutting Machine Open Loop Control

    Fiber Laser Metal Cutting Machine Fiber Laser Cutting Machine Manufacturers

    Intelligent Open Loop Control System Cypcut laser cutting system is a full-featured open-loop control system launched specifically for the dual-use metal processing industry. Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept international standard G codes. When opening and importing external files, optimization is automatically performed. Flexible and diverse automatic layout and manual layout sequence functions, a variety of array methods are available. The powerful material library function allows all process parameters to be saved for the same material to be used again. Processing breakpoint memory and positioning any point function. Fixed-height cutting, off-board following and multiple edge-finding methods. Support remote control of the system via wireless handheld box and Ethernet. One click to set flight cutting path. It is easy to install, easy to debug, excellent in performance and complete in plan.It is the fiber laser cutting control system with the highest market share at present.

    Product Advantages

    The advantages of fiber laser cutting machine:

    1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
    2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
    3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
    4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
    5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption,it is only about 20%-30% of traditional CO2 laser cutting machine.
    30mm Metal Fiber Laser Cutting Machine Open Loop Control
    product details
    The special cutting head for pipes is powerful, light and flexible, durable, easy to control various types of pipes and powerful. high-precision Closed loop stepping motor is adopted to effectively avoid stepping loss. Focusing speed 100M / s, repetition accuracy 1 μ m. IP65 dust-proof, patented protective mirror cover plate, dust-proof without dead corner. Multiple protection 3 protective lenses for efficient protection of collimating and focusing lenses. 2-way optical water cooling, effectively prolonging continuous working time.
    Technique Parameters
    Feature/Model
    HN3015
    HN4015
    HN4020
    Working Area (L*W))
    3000mm*1500mm
    4000mm*1500mm
    4000mm*2000mm
    Stroke (X/ Y/ Z Axis)
    1525mm/3025mm/150mm
    1525mm/4025mm/150mm
    2025mm/4025mm/150mm
    X/Y Axis Positioning Accuracy
    ±0.03mm/m
    ±0.03mm/m
    ±0.03mm/m
    X/Y Axis Repositioning Accuracy
    ±0.03mm
    ±0.03mm
    ±0.03mm
    Max. Moving Speed
    110m/min
    110m/min
    110m/min
    Max. Acc. Speed
    1.0G
    1.0G
    1.0G
    Power Porection Grade
    IP54
    IP54
    IP54
    Laser Power
    1500W~4000W
    1500W~4000W
    1500W~4000W
    Max. Loading Weight
    800kg
    1000kg
    1400kg
    Machine Weight
    3300Kg
    4000Kg
    5100Kg
    Overall Dimensions (L*W*H)
    4850X2730X1700mm
    6015X2730X1700mm
    6015X3300X1700mm
    Application Example
    Fiber laser cutting machine is used in sheet metal processing, advertising sign production, cabinet electrical cabinets,mechanical
    parts, kitchenware, sanitary ware, auto parts, machinery manufacturing,metal crafts, saw blades, electrical parts,glasses
    industry, spring sheets, circuit boards,electrical Kettles, medical microelectronics, hardware, doors and windows and other
    industries.
    Packaging&Shipping
    1. Outside package: Standard marine export plywood case.
    2. Inner package: Stretchy film and plastic film for humidity. We can
    package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
    Company information
    Shandong Honest machinery equipment co., LTD is one of the largest laser equipment manufacturer in China, the company focus on rate of Yu Dagong laser processing complete sets of equipment research and development, manufacture and sales, including the high power laser cutting machine, laser welding machine and multi-function laser processing equipment, providing customers with personalized and professional laser processing system solutions.
    Honest laser main products cover the full power of fiber laser cutting, laser machining equipment and cutting equipment, products widely used in iron and steel metallurgy, non-ferrous metal, automobile and parts, aviation, military electronics, precision instruments, machinery manufacturing, hardware tools, integrated circuit, solar energy, etc.
    The company advocates "taking the interests and needs of customers as the foundation", and devotes itself to "creating value for customers and benefits for society".
    Advanced technology is the guarantee of product quality, the company has completely independent intellectual property rights, has established a sound and effective quality management system and internal control system;
    The company's products and services to prevention, the implementation of customer return visit, continuous improvement, quick response, efficient and accurate service mechanism, to ensure the stable and efficient operation of products, maximize to help customers to improve economic benefits.
    The sales area covers the whole country, and expands to overseas, and the products are highly praised by customers.
    The company is willing to work together with all partners to make progress and win-win development together to create the largest high power laser processing equipment manufacturing and research and development base.
