    4020 Metal Tube And Plate CNC Laser Cutting Machine For Rotary Device

    Ask Lasest Price
    Brand Name : honest
    Model Number : hn-4020
    Certification : ceiso
    Price : 19000-40000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/monthe
    Delivery Time : 20-30day
    • Product Details
    • Company Profile

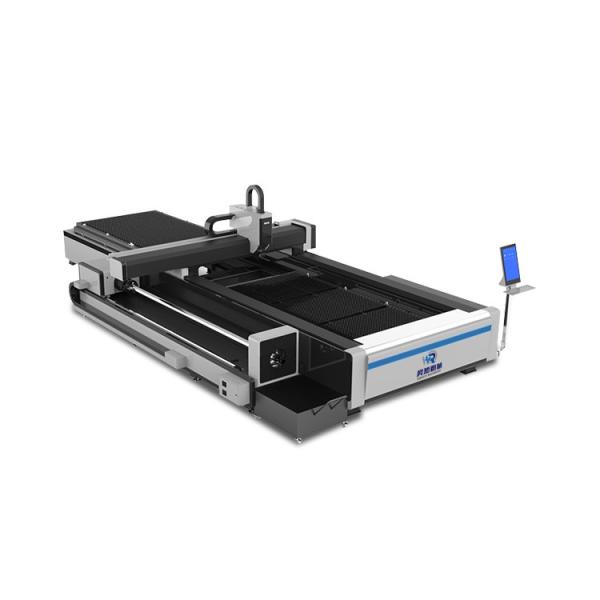

    4020 Metal Tube And Plate CNC Laser Cutting Machine For Rotary Device

    4020 Metal Tube And Plate F Rotary Device Fiber Laser Cutting Machine


    CNC laser cutting machine, also called fiber laser cutting machine, fiber laser cutter, laser cutter, metal laser cutter, metal laser cutting machine, designed for high precision metal plate cutting processing.


    ModelHN-3015/HN-2040/HN-2060
    Working are3000mm*1500mm
    Miximum length of pipe(Options)3000mmor6000mm
    Limits of pipe(Customized)Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
    Laser typeFiber laser generator
    Laser power(optional)500~2000W
    Transmission systemDouble serve motor &gantry&rack&pinion
    Pipe cutting system(optional)Yes
    Maximum speed100m/min
    Maximum accelerated speed1.0G
    Position accuracy±0.15mm/1000mm
    Reposition accuracy±0.02mm/1000mm
    Graphic format supportedCAD,DXF(etc)
    Working environmentTemp:0-40℃,humidity:≤80%,No condensation
    Total power10KW
    Power supply380V/50Hz/60Hz
    Overall dimension(include cutting machine in 3 meters long)4350mm*3200mm*1740mm
    Overall dimension(include cutting machine in 6 meters long)7650mm*3200mm*1740mm


    product details


    The machine tool adopts an integral profile welded structure that has passed CAE analysis, demonstration and verification for many times. Annealing eliminates internal stress and finish machining, which better solves the stress caused by welding and processing, thereby improving the rigidity and stability of the equipment.



    Packaging Details:


    1. Outside package: Standard marine export plywood case.
    2. Inner package: Stretchy film and plastic film for humidity.
    We can package according to your requests.
    Delivery Detail: Shipped in 3-20 working days after payment.



    Certifications


    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
    Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.



    Customer visiting


    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.
    Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
