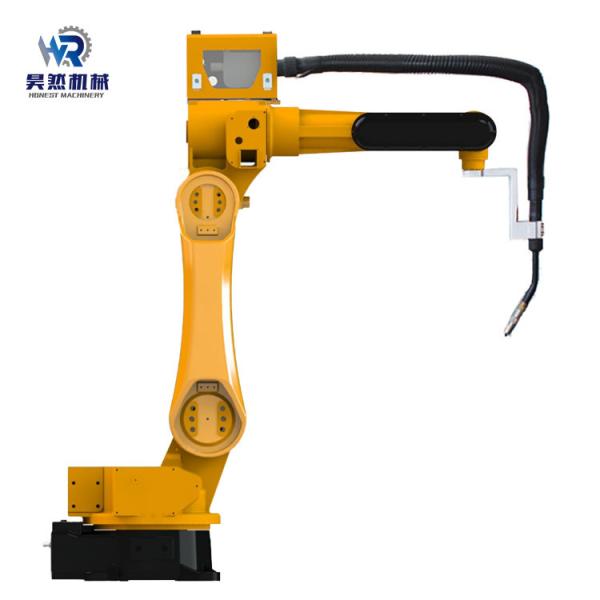

Reduce Enterprise Cost 1400 Fast Action Stable Position Mig Welder
Arm Welding Robot
The robot is mainly used for arc welding,with high reliability and
excellent value for money. welding robot hollow structural arms and wrists,welding robot built-in welding cable,able to operate welding procedure in narrow
space,lightweight,compact structure.
welding robot by installing protective cover, you can rest assured that it can
be used in a variety of harsh environments(dust and drip). welding robot large workspace,welding robot fast running speed, welding robot
high repeat positioning accuracy, suitable for quality demanding
welding applications.
★Product Data
| HN -1400 Robot Basic specification |
| Mechancism | Vertical multi-joint robot |
| Degrees of freedom | 6 |
| Payload | 4kg |
| Armspan | 1410.5mm |
| Repeat positioning | + 0.03mm |
Motion Range | J1 | ±168° |
| J2 | +150°,-89° |
| J3 | +85°,-111° |
| J4 | ±167° |
| J5 | +58°,-217° |
| J6 | ±360° |
| Max speed | J1 | 3.5 rad/s | 201°/s |
| J2 | 3.5 rad/s | 201°/s |
| J3 | 4.1 rad/s | 235°/s |
| J4 | 6.1 rad/s | 350°/s |
| J5 | 6.2 rad/s | 355°/s |
| J6 | 8.4 rad/s | 487°/s |
Maximum acceleration | J1 | 15(45) rad/s 2 |
| J2 | 12.5(21) rad/s 2 |
| J3 | 20(31) rad/s 2 |
| J4 | 50 rad/s 2 |
| J5 | 45 rad/s 2 |
| J6 | 60 rad/s 2 |
Allowable torque | J4 | 10.51 N.m |
| J5 | 10.51 N.m |
| J6 | 2.94 N.m |
Inertia moment | J4 | 0.38 kg.m 2 |
| J5 | 0.38 kg.m 2 |
| J6 | 0.038kg.m 2 |
| Robot body weight | 150 kg |
Installation environment | TEMP | 0~45 ℃ |
| HUM | 20%~80% RH(No condensation) |
| NVH | <4.9m/s 2 (0.5G) |
| Others | Avoid flammable,corrosive gases and liquids; Avoid contact with water, oil, dust, etc; Do not approach electrical noise source. |
| Power capacity | 2.7kVA |
★Product Details
welding robot By installing protective cover, you can rest assured
that it can be used ina variety of harsh environments(dust and
drip).welding robot Large workspace, welding robot fast running speed,
welding robot high repeat positioning accuracy,suitable for quality
demanding welding applications.
★Samples
★Packaging & Delivery
1.Anti-collision package edge:All parts of the machine are covered
with some soft materials
2.Fumigation wooden box:Our wooden box is fumigated,do not need to
check the wood,saving the transport time.
3.Whole film packaging machine:Avoid all famage that may occur
during delivery.Then we will cover the plastic package tightly to
ensure that the soft material is covered intact,also avoiding water
and rust.
The outermost is a wooden box with a fixed template.
★Competitive Advantages

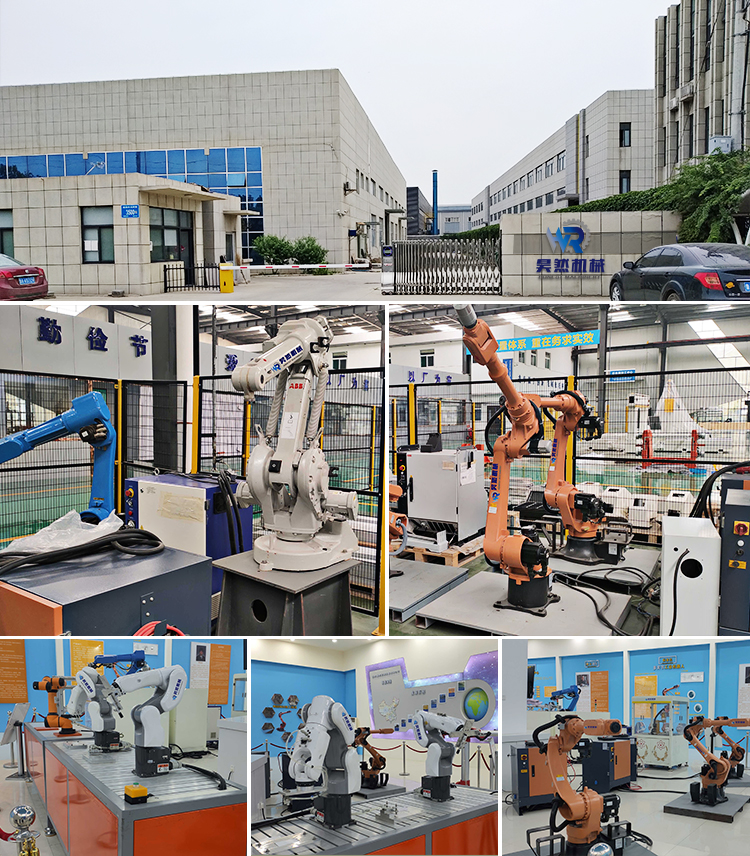

Shandong Honest Machinery CO., LTD., is a provincial key enterprise
specializing in the research and development of numerical control
equipment. It integrates development, production and sales.
The company has a series of CNC engraving machines, laser machines
and other products, which are widely used in machinery, mold,
advertising, wood processing, stone processing and other
industries.Equipment sales throughout the provinces, autonomous
regions, and exported to Russia, Mongolia, South Korea and other
countries.Advanced manufacturing technology, large-scale
production, high-quality product quality, professional user
training, timely after-sales service, is the basis to ensure
customer satisfaction.
Honest products have been widely used in the advertising industry,
woodworking industry, craft gifts, architectural models,
electronics, CAD/CAM industrial mold industry, decoration,
clothing, packaging printing, logo, seal and other industries;And
because of its distinctive cost performance in each domestic
application field has completely replaced the import of similar
products.
