6 M Rotation Axis Tube Stainless Steel Pipe Laser Cutting Machine
Product Description
Fiber laser is a new type of fiber laser that is newly developed in
the world. It outputs high-energy-density laser beam, which is
concentrated on the surface of the workpiece, so that the area
irradiated by the ultra-fine focus spot on the workpiece is
instantly melted and vaporized, and the spot is moved by the
numerical control mechanical system. Realize automatic cutting by
irradiating the position. Compared with bulky gas lasers and
solid-state lasers, it has obvious advantages and has gradually
developed into an important candidate in the fields of
high-precision laser processing, lidar systems, space technology,
and laser medicine.
The fiber laser cutting machine can be used for plane cutting or
bevel cutting, and the edges are neat and smooth. It is suitable
for high-precision cutting processing such as metal plates. At the
same time, it can be used for three-dimensional cutting with a
mechanical arm instead of the original imported five. Axis laser.
Compared with the ordinary carbon dioxide laser cutting machine, it
saves more space and gas consumption, and has a high photoelectric
conversion rate. It is a new energy-saving and
environmentally-friendly product, and it is also one of the world's
leading technological products.
| Item | Parameter |
| Laser power(W) | 1000W-2000W |
| Laser wavelength | 1070 nm |
| Beam quality | <0.373mrad |
| Minimum line width | ≤0.15mm |
| Cooling type | Water cooling |
| Maximum acceleration | 1.5G |
| Cutting accuracy | ±0.3mm |
| Loading type | Automatic loader |
| Automatic loader length | 4000mm-6200mm |
| Automatic loader time | 2s |
| Covering area | 9.2m×2m |
| Machine weight | 3T |
| Cutting range | Fully automatic loader Round tube:∅18-60mm Square
tube:18×18-60×60mm Slide loader Round tube:∅10-60mm Square
tube:10×10-60×60mm |
Product Details
1. Excellent beam quality: Smaller focus diameter , high work
efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3. High Stability: Adopt superior quality fiber laser, stable
performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2
laser cutting machine, Fiber laser cutting machine has 3 times
photoelectric conversion and with energy saving & friendly
environment .
5. Low cost: The whole power consumption is only 20-30% of
traditional CO2 laser cutting machine.
6. Low maintenance cost: It is with Optical fiber line
transmission, no need reflector lens, can save a lot of maintenance
cost.
7. Easy Operation : Fiber Line transmission, no adjustment of
optical path.
8. Super-flexible optical effect : small volume, compact structure,
easy to flexible manufacturing requirements .

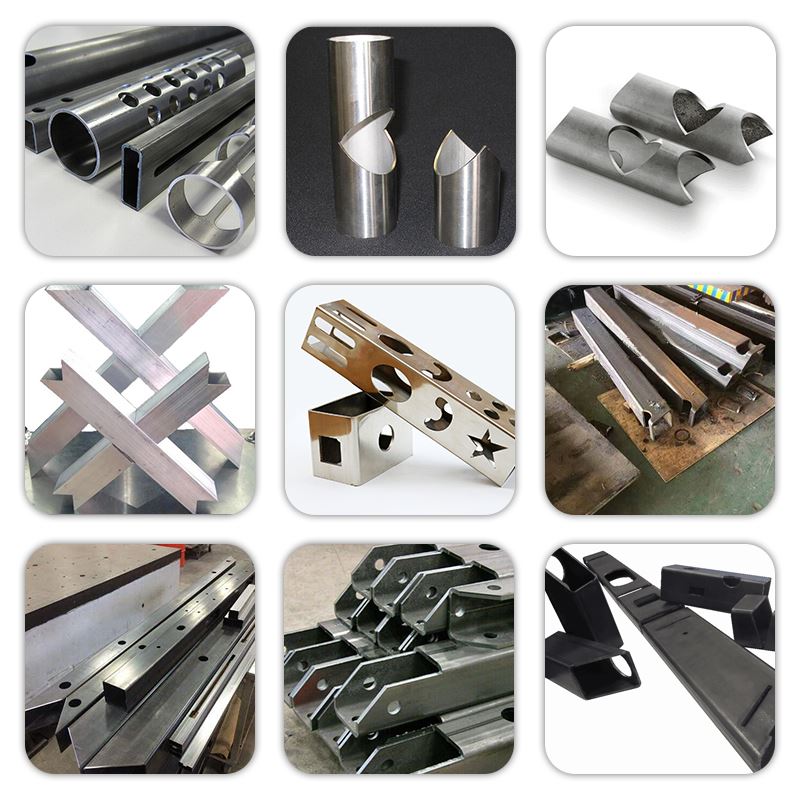

Application&samples
Laser Cutting machine is suitable for variety of metal plates,
pipes ( with special device ), stainless steel, carbon steel,
galvanized sheet, pickling board, brass plate, aluminum plate,
manganese steel, all kinds of alloy plates, rare metals etc.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, and has been in the laser field for 22 years.
Q: How long is your delivery time?
A: Generally it is 15 days, it also depends on the machine model
and quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers
should pay the carrier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shipment.
