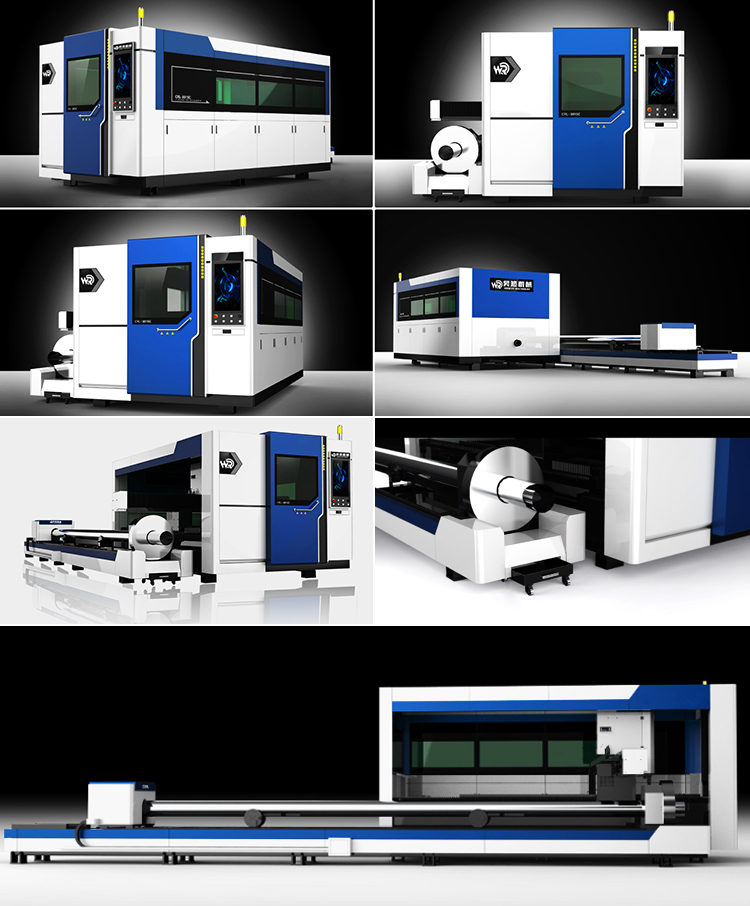

Faster Cutting Speed, Higher Cutting Accuracy And Thick Plate
Cutting Stability Fiber Laser Cutting Machine
Heavy plate welding bed
Aircraft metal honeycomb structure
The internal structure of the bed adopts an airplane metal
honeycomb structure, which is welded by multiple rectangular pipes.
The pipe is equipped with reinforcing ribs to increase the strength
and tensile strength of the bed, increase the tensile strength and
stability of the guide rail surface, and effectively avoid
deformation of the bed .
No deformation for 20 years
Increase the strength and tensile strength of the bed, increase the
tensile strength and stability of the guide rail surface, and
effectively avoid deformation of the bed. High strength, stability,
tensile strength, guarantee no deformation for 20 years; the wall
thickness of the rectangular tube is 10 mm, and the whole body
weighs 6,500 kg.
| Model | HN-3015 |
| Working area | 3000mm x 1500mm |
| Laser type | Fiber laser |
| Rated laser power (optional) | 500W~3000W |
| Traditional system | Gantry double drive structure |
| lubrication system | Fully automatic |
| Maximum speed | 100m/min |
| Maximum acceleration | 1.0G |
| positioning accuracy | ±0.01mm/1000mm |
| Repeated positioning accuracy | ±0.03mm/1000mm |
| Support for graphic formats | CAD, DXF(etc) |
| work environment | 0-40 ℃, humidity ≤ 80%, no condensation |
| Total power | 20KW |
| Power demand | Three phase 380V / 50Hz / 60Hz |
| Outline size | 4450mm x 2450mm x 1800mm |
| Total weight approximately65 | 6200KG |
Product details
It can realize data communication from the operating system to the
control system, servo drive, laser, and cutting head through the
EtherCAT bus.
It overturns the one-to-one data communication method of ordinary
10,000-watt cutting machine hard wire + analog quantity; simple
circuit, low failure rate, fast data transmission speed, stability
and no interference,
Achieve faster cutting speed, higher cutting accuracy and thick
plate cutting stability.
Application&samples
It can cut many kinds of metal plates and pipes. It is mainly
suitable for the fast cutting of stainless steel, carbon steel,
manganese steel, galvanized plate, various alloy plates, rare
metals and other materials.
Applications
Kitchen fixtures, hardware cabinets, sheet metal processing, auto
parts, refrigerators, air conditioners, elevators, hotel metal
supplies. fiber laser cutting machine
Customer visiting
We welcome customers to visit the factory, we will let you buy, we
will have customers to visit the factory and customers online
purchase feedback, through feedback learning experience, continuous
progress, better service for you.
Shandong Honest is willing to unremitting pursuit and efforts, hand
in hand with merchants to create a brilliant future
Certifications
All products are available upon request, with or without
trademarks. If you need OEM service with your own brand or product,
please let us know. If you have any other specific requirements,
please feel free to contact us.
Our factory has obtained the import and export license issued by
the Ministry of foreign trade, and passed the iso9001 quality
management system certification and CE certification. In the
quality layer by layer, we will wholeheartedly serve for the
majority of customers.
Our Services
Pre-sale
Provide detailed suggestions, as well as the introduction of laser
fiber cutting machine, program suggestions
And on-site inspection, as far as possible to meet your problems
and needs.
Payment and machine production
Support a variety of payment methods for laser fiber cutting
machines, the production process is transparent, standardized, and
fast delivery. After the machine is completed, it can take a video
for you
After sale
Support diversified guidance, training, voice and video images of
laser fiber cutting machines, and even on-site installation,
on-site training, daily maintenance, continuous return visits, and
customer service of overseas fiber machines.
